Request a Quote

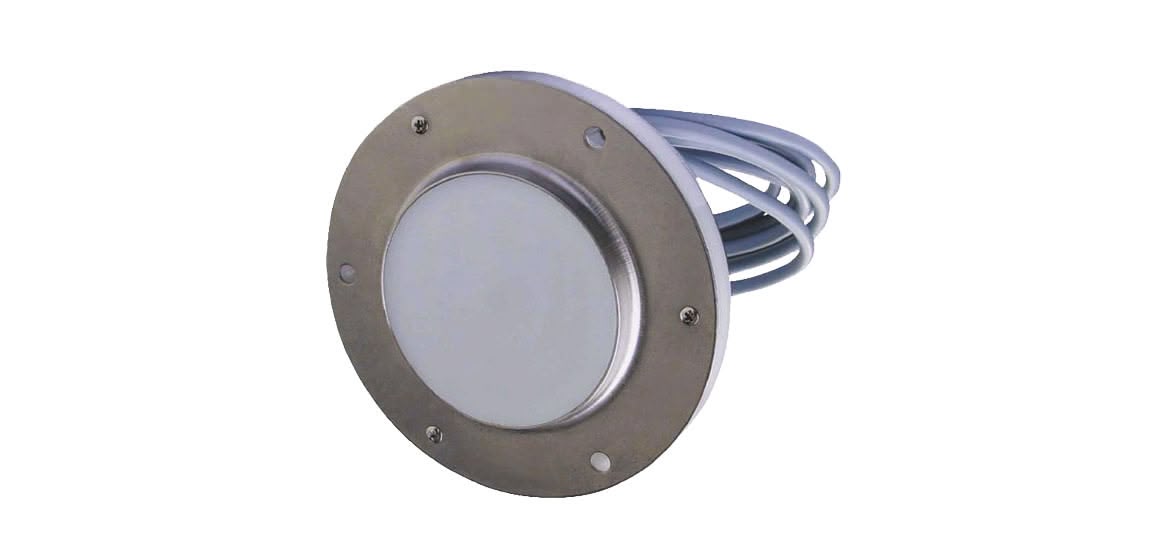

Capacitive Type Moisture Probes
Moisture sensors (Moisture Probes) have a wide range of application mainly in concrete plants, prefabricated building materials, glass, cast factories, food, ceramics and animal feed industries.
Description
Moisture probes are supplied as capacitive, microwave and HPR (High Frequency Polar Reflective) types, together with their indicators.
CAPACITIVE TYPE MOISTURE PROBES
24VDC±10% voltage power supply is required for this type. The signal output is either between 0 to 20mA or 4 to 20mA range.
The moisture probe can be connected directly to the control unit, without any need for additional signal or display units.
MPV Adjustable Flange Probe
It is an adjustable flange probe for universal applications. It is also suitable for thick wall situations. It can be mounted on top of conveyor belts to measure the moisture of materials passing.
MPM Mixer Probe
It is designed for rough environments and used in mixer applications. It has additional abrasion protection by the help of 8mm thick replaceable reinforcing tube and 10mm thick ceramic measuring surface.
MP1 Disc Probe
It is used for universal applications. The installation depth is fixed at 9mm without abrasion protection or 11mm with abrasion protection.
MPA Arm Mounted Probe
It is an arm mounted probe suitable for silo applications. The standard arm lengths are 200mm, 500mm and 1000mm.
MPH High Temperature Probe
It is a high temperature probe withstanding up to +190°C at the measuring head. Maximum ambient temperature at the backside electronics is +80°C.
Downloads
Unfortunately there are no downloads available at this time, please enquire if you require specific information.
Additional Information
Additional specifications will be added soon.
