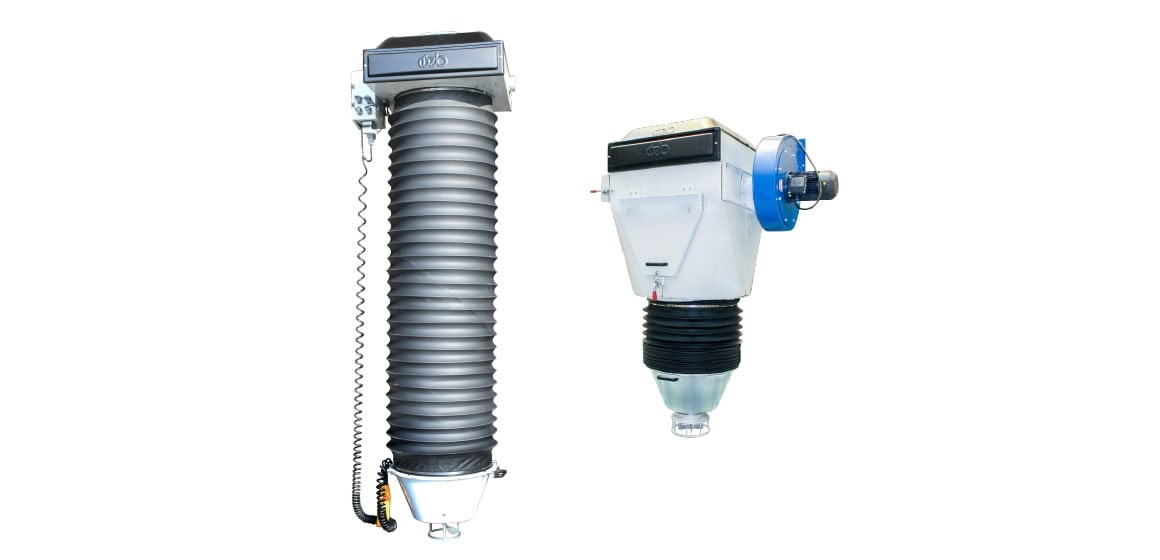

Loading Bellows
The loading bellows are designed to guide the flow and contain the dust of bulk materials during transfer to closed or open storage areas.
Description
A filter with fan system could also be added to collect the dust for re-use and to prevent environmental pollution.
Loading bellows are available in two different types for closed tank/silo truck loading or open truck loading.
The inner and outer bellows are made of flexible and foldable PVC coated polymer as standard, the fabrics are flame resistant and have antistatic properties. They have a high density, are resistant to deterioration and abrasion and, thanks to their flexibility, are resistant to tearing and other damage.
Features
A dust collector with fan system could also be added to collect the dust for re-use and to prevent environmental pollution.
Loading bellows with both inner and outer bellows are supplied in two different types for closed tank/silo-truck loading and for open truck loading.
Inner and outer bellows are made of flexible and pliable rubber coated PVC, which is oil repellent and resistant to general chemicals.
Technical Information
Inlet diameter: 300mm
Max capacity: 250m3/h
Inner and Outer Bellow: Rubber coated PVC
Drive group: 0,75kW
Electric panel and push button: Optional
Dust Collector & Fan: Without (May be separately supplied)
Limit switch for retracted and extended position: Included
Level indicator: 230VAC rotating paddle type, included
Operating temperature: Nominal -40°C/+90°C
